Manufacturer: AmeriGlide OEM Code:AMGHERC2-RES

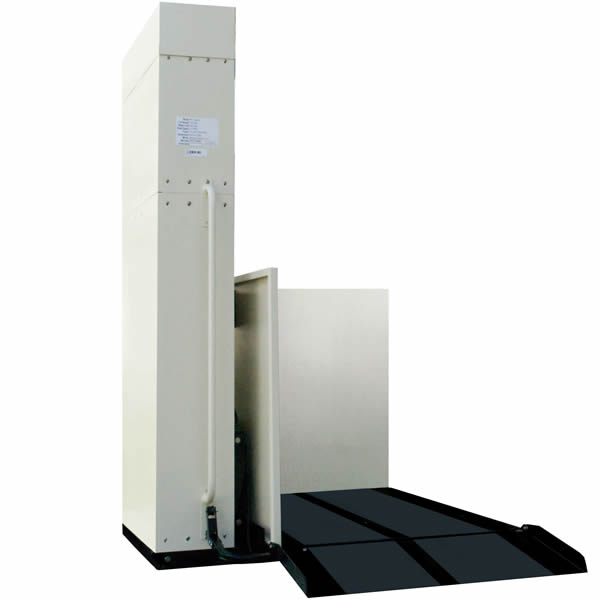

The AmeriGlide Hercules II 600 Residential Vertical Platform Lift allows you to save money on a VPL without sacrificing safety or quality. The Hercules II 600 Residential comes with a reliable and safe Acme screw drive system, an automatic folding ramp, a solid platform, and a safety pan. It also meets ASME 18.1 - Section 5 and CSA B44.1 / ASME 17.5 safety requirements.
- Lifting Capacity: 600 lb
- Standard Lift Height: 53"
- Maximum Lift Height: 101"
- Arrives Assembled: No
- Standard Drive System: Acme Screw Drive
- Optional Drive System: None Available
- Battery Powered Option: Yes
- Constant Pressure Platform Controls: Yes
- Emergency Stop Platform Control: Included
- Alarm Button: None Available
- Keyed Controls: Optional
- Call-Send Controls: Optional
- Keyed Call-Send Controls: Non-Keyed, Keyed, Wireless
- Platform Type: Solid with Non-Skid Coating
- Standard Platform Size: 36" x 48" (34" Usable Width)
- Optional Platform Sizes: 36" x 54" (34" Usable), 36" x 60" (34" Usable), 42" x 54" (40" Usable)
- Standard Platform Configuration: Straight-Thru Access
- Optional Platform Configurations: Same Side Entry-Exit, 90 Degree Adjacent Access
- Upper Landing Gate: Optional
- Upper Access Ramp: None Available
- Lower Access Ramp: Automatic Folding, Optional Fixed
- Grab Rail: Included
- Guard Panel: 36", Optional 42"
- Maximum Stops: 2
- Lift Speed (FPM): 10
- Portable: None Available
- Door Access: 38.5" Opening Required
Use our Virtual Lift Builder to visualize your lift.
