Manufacturer: Adaptive Engineering Ltd OEM Code:CX
$10,500.00
Free Shipping

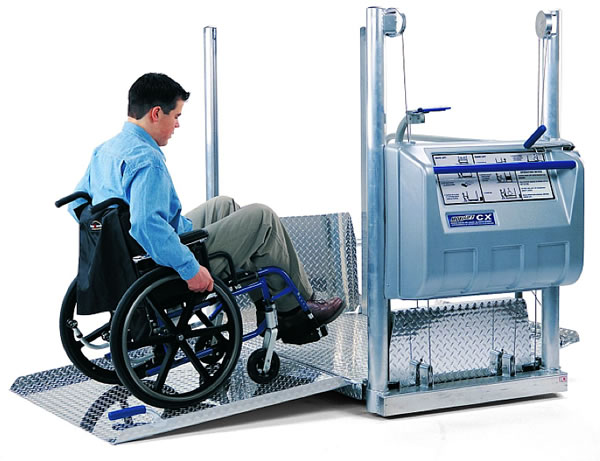

The Mobilift CX is unique among all the vertical platform lifts that we offer in that is does not use a battery, require a connection to an AC outlet, or have hydraulic components that can be more difficult to maintain. In fact, the Mobilift CX is a completely hand powered unit.

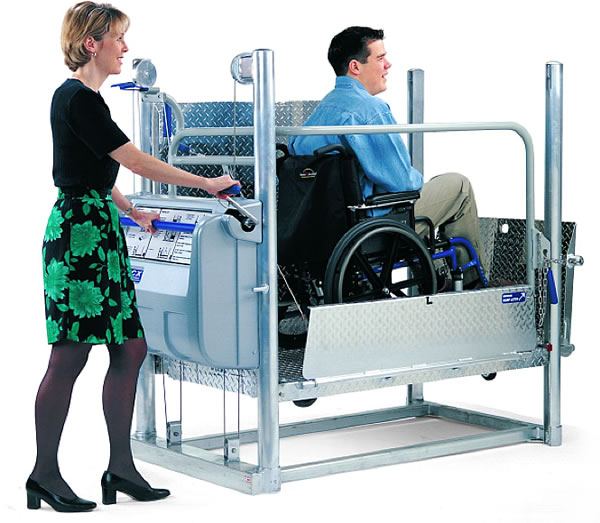

The hand crank on the Mobilift CX is simple to use and requires only 5 pounds of force to lift 150 pounds and 11 pound of force to lift 300 pounds. It takes 20 seconds to raise the lift to its maximum height of 60 inches in most situations.
The hand crank on the Mobilift CX is simple to use and requires only 5 pounds of force to lift 150 pounds and 11 pound of force to lift 300 pounds. It takes 20 seconds to raise the lift to its maximum height of 60 inches in most situations.
Quick Stats
- Lifting Capacity: 600 lb
- Standard Lift Height: 60"
- Maximum Lift Height: 60"
- Portable: Yes
- Arrives Assembled: Yes
- Standard Drive System: Manual Crank
- Optional Drive System: None Available
- Battery Powered Option: No
- Constant Pressure Platform Controls: No
- Emergency Stop Platform Control: N/A
- Alarm Button: N/A
- Keyed Controls: N/A
- Call-Send Controls: N/A
- Keyed Call-Send Controls: N/A
- Platform Type: Solid Aluminum
- Standard Platform Size: 34" x 56"
- Optional Platform Sizes: None Available
- Standard Platform Configuration: Adjacent Access
- Optional Platform Configurations: None Available
- Upper Landing Gate: None Available
- Upper Access Ramp: 20" Bridge, Optional 10", 30", 40", 50", 60"
- Lower Access Ramp: 40" Manual Folding Ramp
- Grab Rail: Standard
- Guard Panel: None Available
- Maximum Stops: 2
Additional Images
Related Products
Product Reviews
| 1 review | ||
|
|
|
1 |
|---|---|---|
|
|
|
0 |
|
|
|
0 |
|
|
|
0 |
|
|
|
0 |
Sort by
| Excellent product | |
|
Sep 11, 2011 7:38 AM
|
|
|---|---|
| Mak from Maryland would recommend this to a friend. | |
| A Little About Myself |
Neighbor
|
| Pros |
Very sturdy wheelchair lift and very easy to use. Well thought out design, it's even portable! Easy to crank for the average person.
|
| Cons |
No adapter or accessory to make it motorized.
|
|
With the excellent engineering already complete, I would think it would not be difficult to install a motor. My neighbors are elderly and utilizing the lift would be a challenge for them.
|
|
