AmeriGlide Hercules 750 Commercial

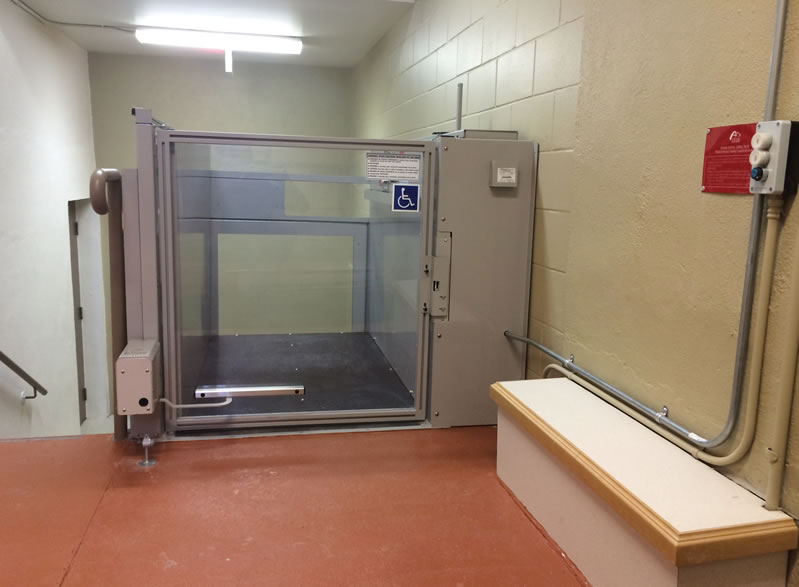

  • Shown with Acrylic Gate

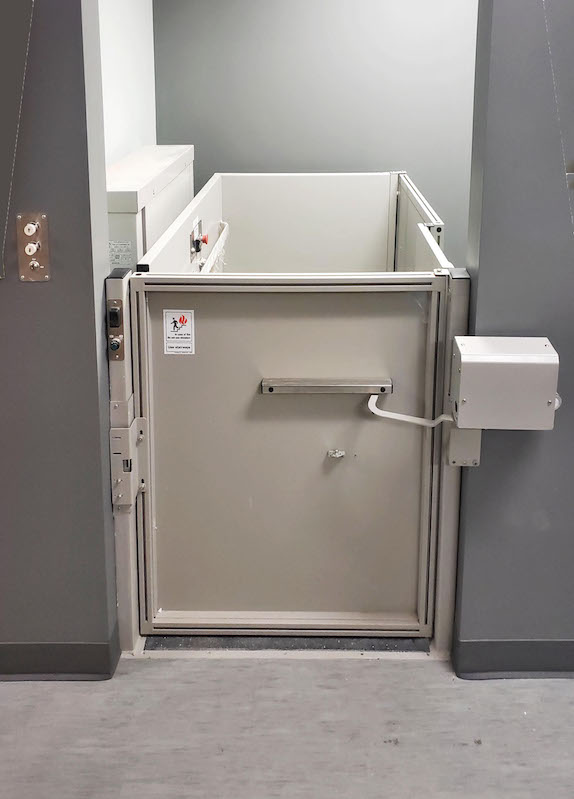

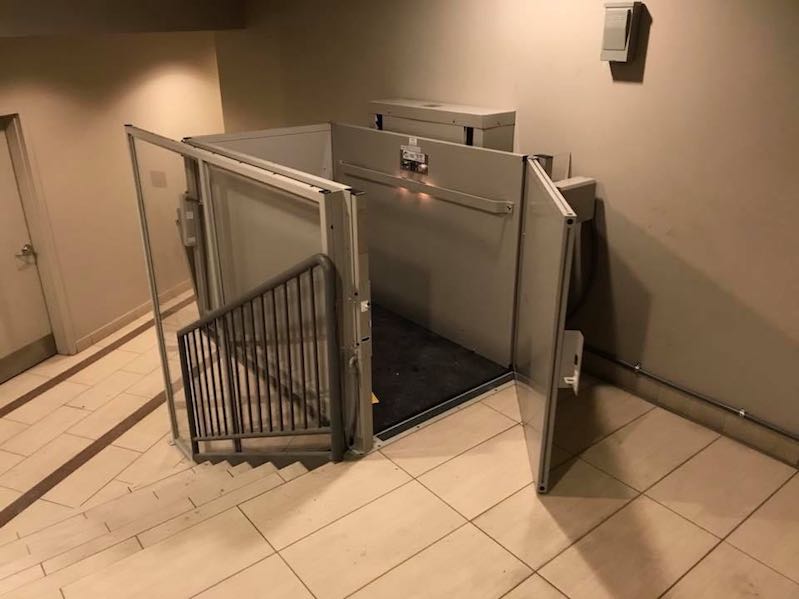

  • Shown with Standard Gate
  • Shown in a Hoistway

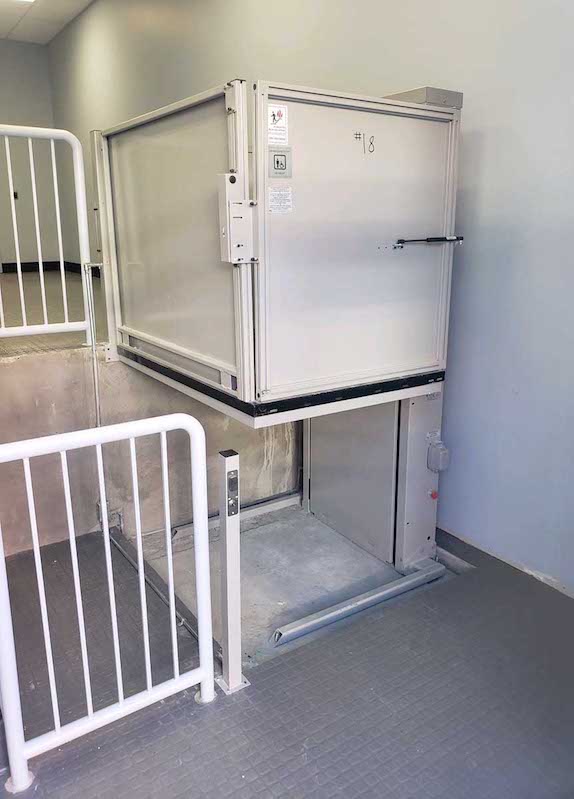

  • Shown at Upper Stop

The AmeriGlide Hercules 750 Commercial Vertical Lift is the ideal vertical platform lift for outdoor or indoor commercial applications. Perfect for businesses, municipal buildings, colleges, churches, theaters, and more. The non-skid epoxy coated floor and galvanized steel panel is weather resistant, even in the harshest conditions.

A 750 pound weight capacity comes standard on the Hercules, but a 1000-pound capacity is available as an option. Great for lifting large wheelchairs and two people at one time.

The acme screw direct drive makes the Hercules the smoothest and quietest lift on the market. Being battery powered, the lift and its automatic self-lowering folding ramp (standard) will even work during a power outage.

Safety features include under platform obstruction detection, emergency stop switch, anti-skid floor surface, emergency alarm, and much more.

To learn more about the Hercules 750 Commercial Vertical Lift, call and speak with our experienced VPL experts today.

If you need a fully enclosed Vertical Lift, see our AmeriGlide Hercules 750 Commercial Enclosed Vertical Platform Lift.

Watch a video about the AmeriGlide Hercules 750 Commercial

Questions? Contact Us.

Specifications
  • Lifting Capacity

    750 lb

  • Standard Lift Height

    64"

  • Maximum Lift Height

    160"

  • Arrives Assembled

    No

  • Standard Drive System

    Direct Drive ACME Screw

  • Battery Powered Option

    Yes

  • Constant Pressure Platform Controls

    Yes

  • Alarm Button

    Included

  • Platform Type

    Non-skid (Epoxy crushed and recycled tires)

  • Standard Platform Size

    W 34"-36" x L 54"-60"

  • Optional Platform Sizes

    Custom: W (31" to 42") x L (46" to 66")

  • Standard Platform Configuration

    Straight-Thru Access

  • Optional Platform Configurations

    Same Side Entry-Exit, 90 Degree Adjacent Access

  • Grab Rail

    Included

  • Maximum Stops

    3

  • Lift Speed (FPM)

    12

  • Portable

    Optional
