Manufacturer: AmeriGlide OEM Code: HERC 750 DC Residential [64,44, 78, 98]
Quick Stats
- Lifting Capacity: 750 lb
- Standard Lift Height: 64"
- Maximum Lift Height: 160"
- Arrives Assembled: No
- Standard Drive System: Direct Drive ACME Screw
- Battery Powered Option: Yes
- Constant Pressure Platform Controls: Yes
- Alarm Button: Included
- Platform Type: Non-skid (Epoxy crushed and recycled tires)
- Standard Platform Size: W 34"-36" x L 54"-60"
- Optional Platform Sizes: Custom: W (31" to 42") x L (46" to 66")
- Standard Platform Configuration: Straight-Thru Access
- Optional Platform Configurations: Same Side Entry-Exit, 90 Degree Adjacent Access
- Grab Rail: Optional
- Maximum Stops: 3
- Lift Speed (FPM): 12
- Portable: Optional
Documents

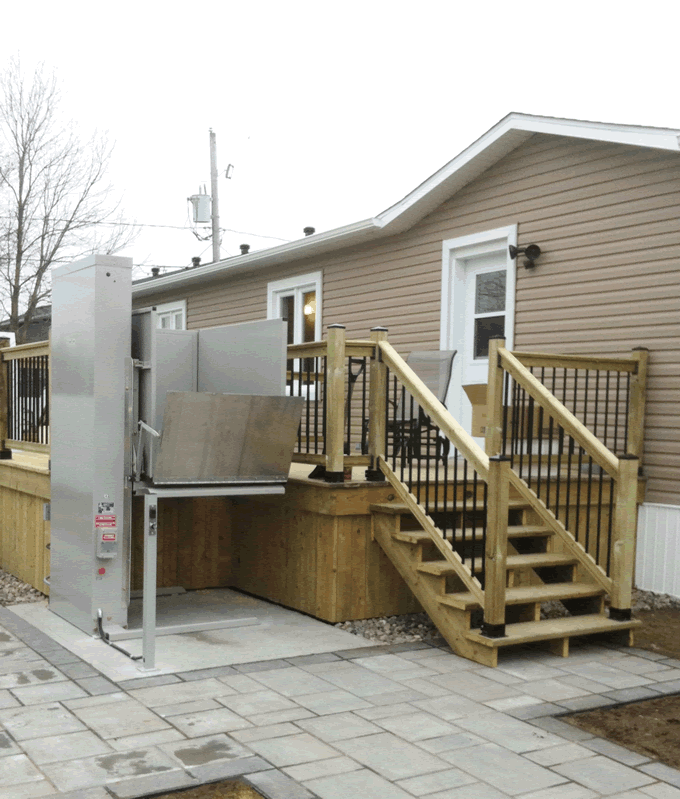

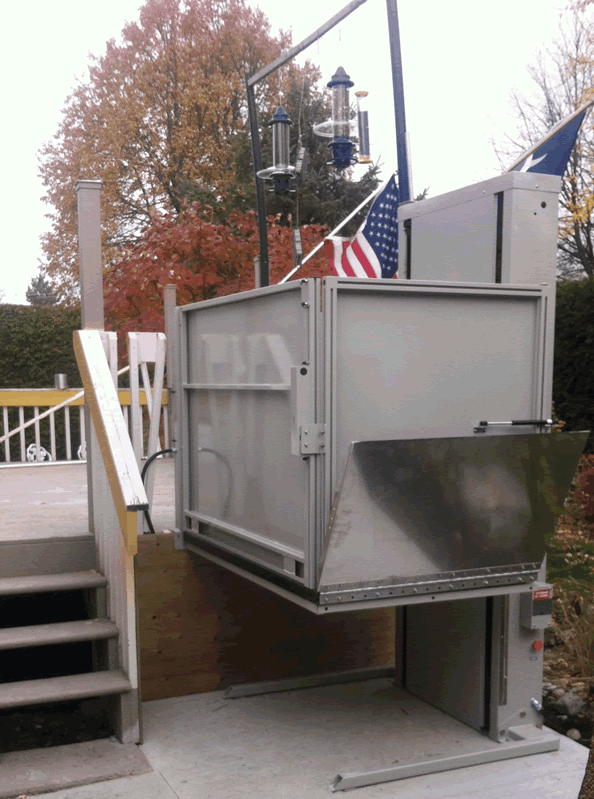

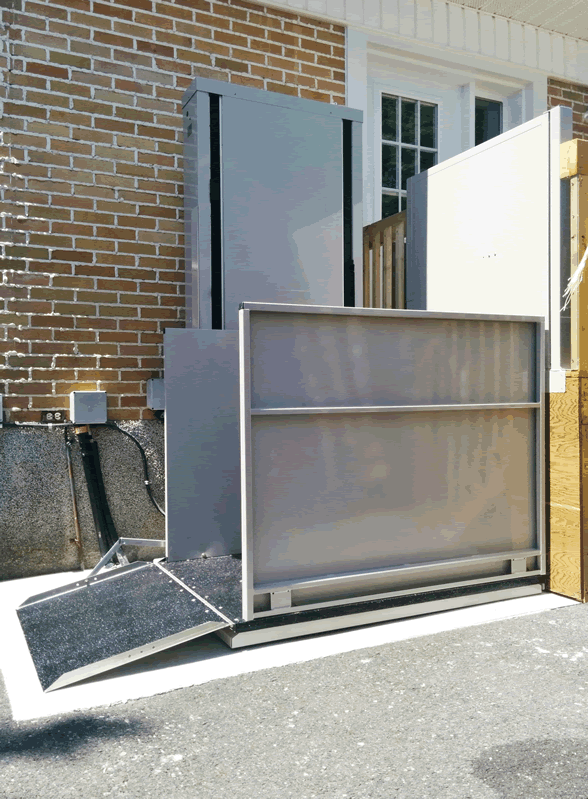

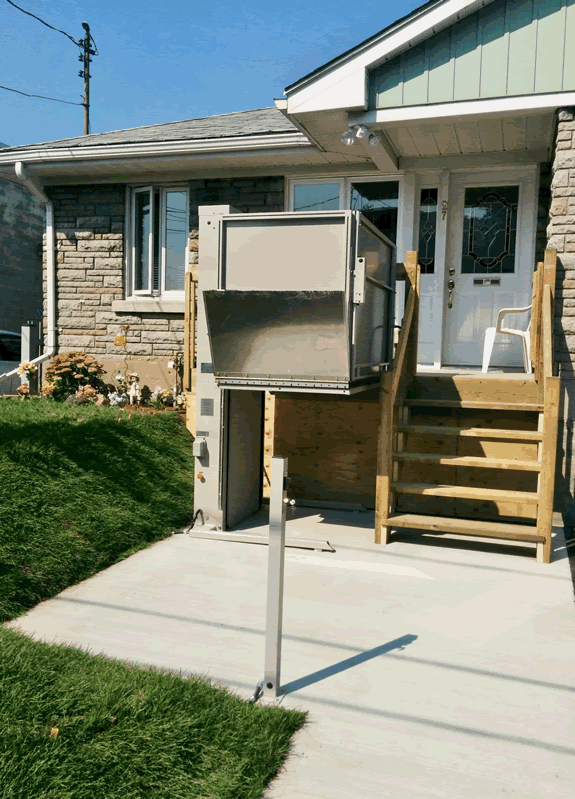

The AmeriGlide Hercules 750 Residential Vertical Lift is the ideal vertical platform lift for outdoor or indoor applications. Great for porches, decks, and garages too! The non-skid epoxy coated floor and galvanized steel panel is weather resistant, even in the harshest conditions.
A 750 pound weight capacity comes standard on the Hercules, but a 1000-pound capacity is available as an option. Great for lifting large wheelchairs and two people at one time.
The acme screw direct drive makes the Hercules the smoothest and quietest lift on the market. Being battery powered, the lift and its automatic self-lowering folding ramp (standard) will even work during a power outage.
Safety features include under platform obstruction detection, emergency stop switch, anti-skid floor surface, emergency alarm, and much more.
To learn more about the Hercules 750 Residential Vertical Lift, call and speak with our experienced VPL experts today.
If you need a fully enclosed Vertical Lift, see our AmeriGlide Hercules 750 Commercial Enclosed Vertical Platform Lift.
