Crest Coastal Aluminum VPL

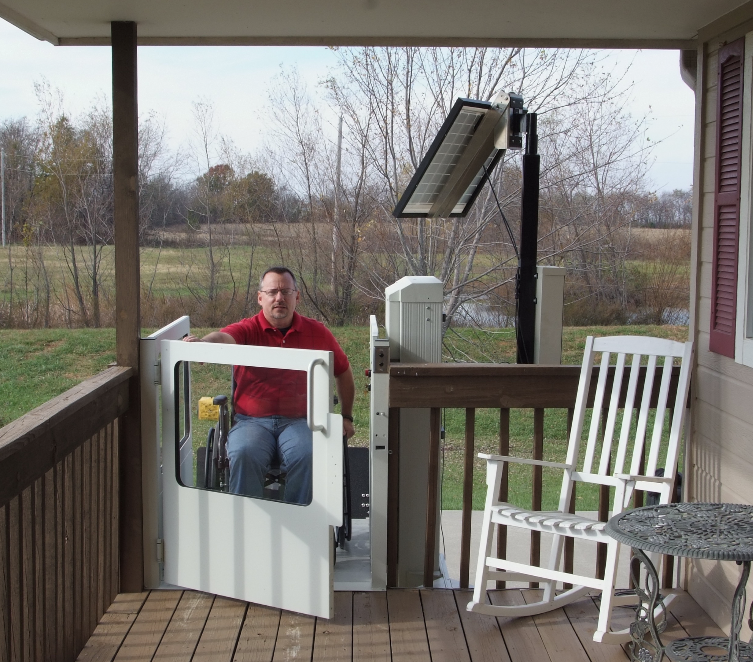

  • Exiting Top Level

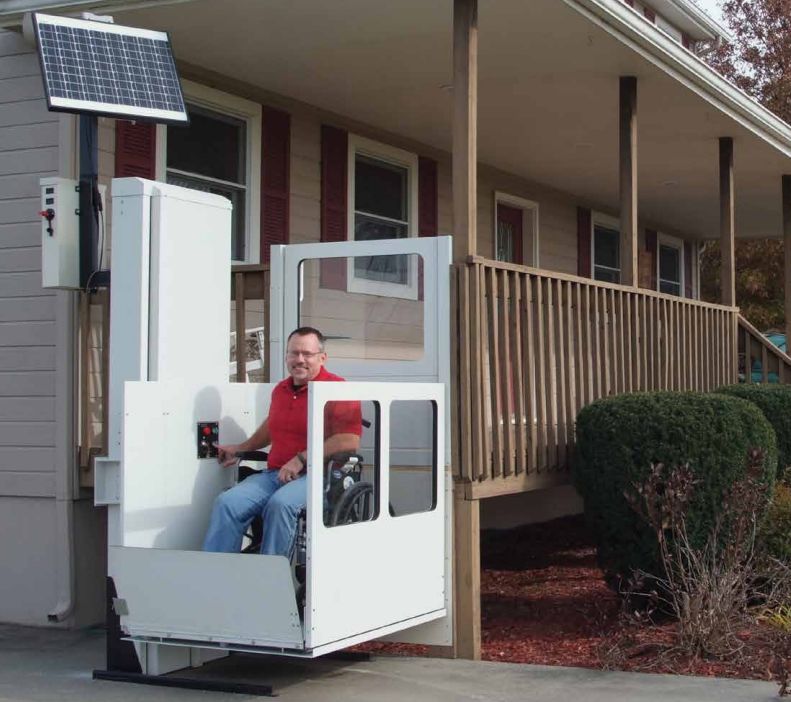

  • With Optional Solar Charger

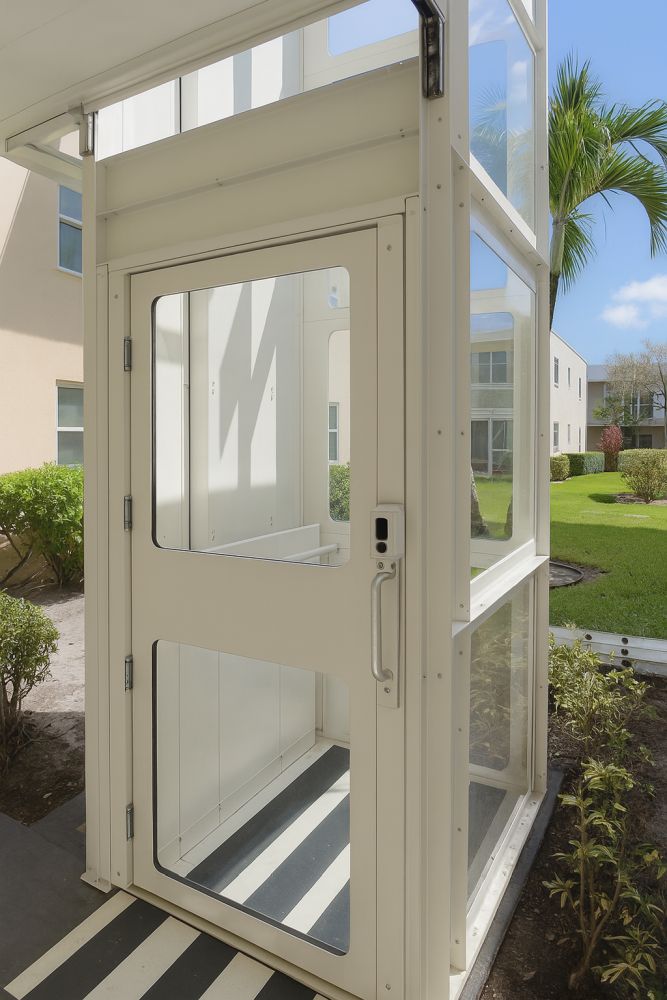

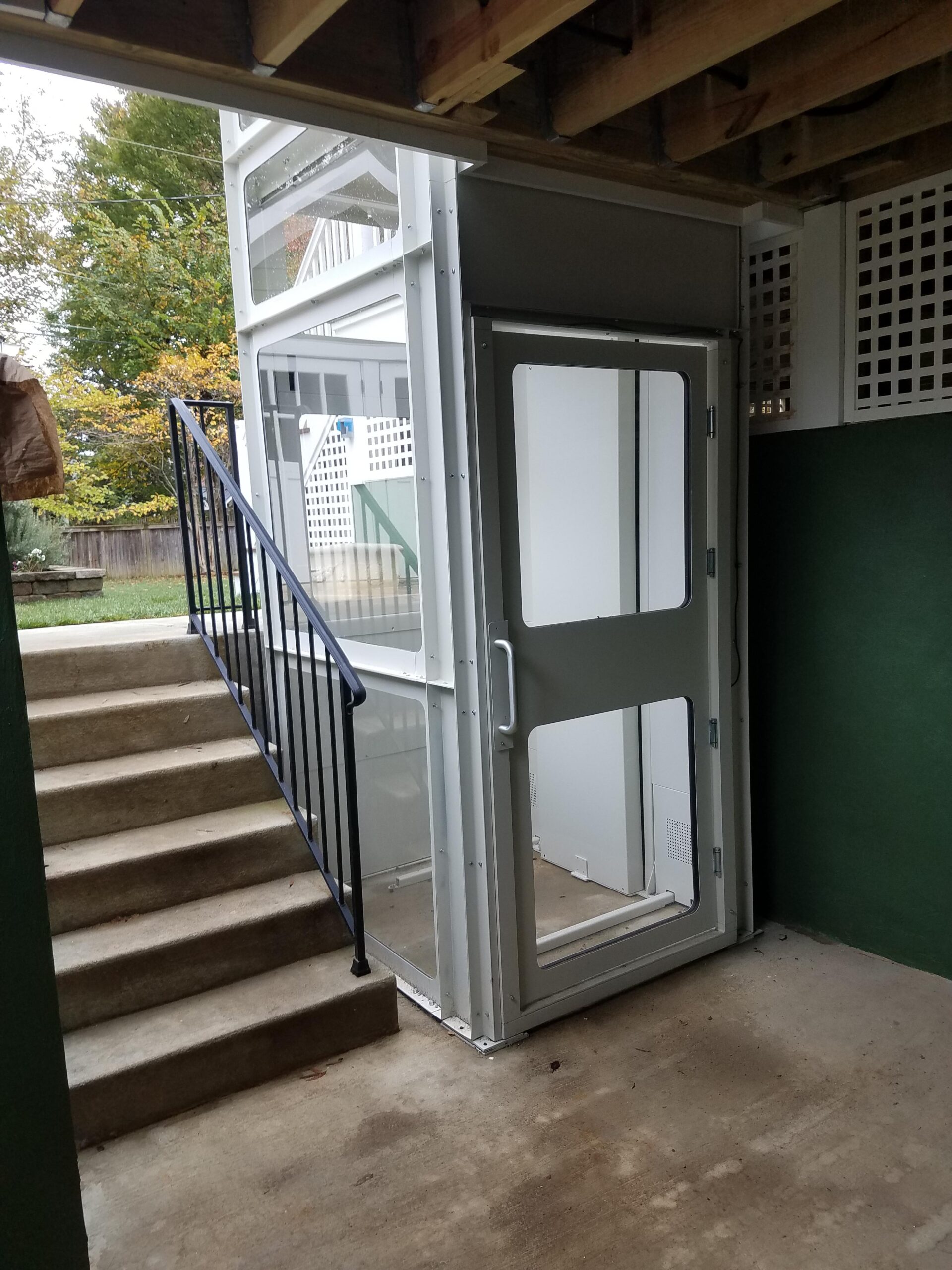

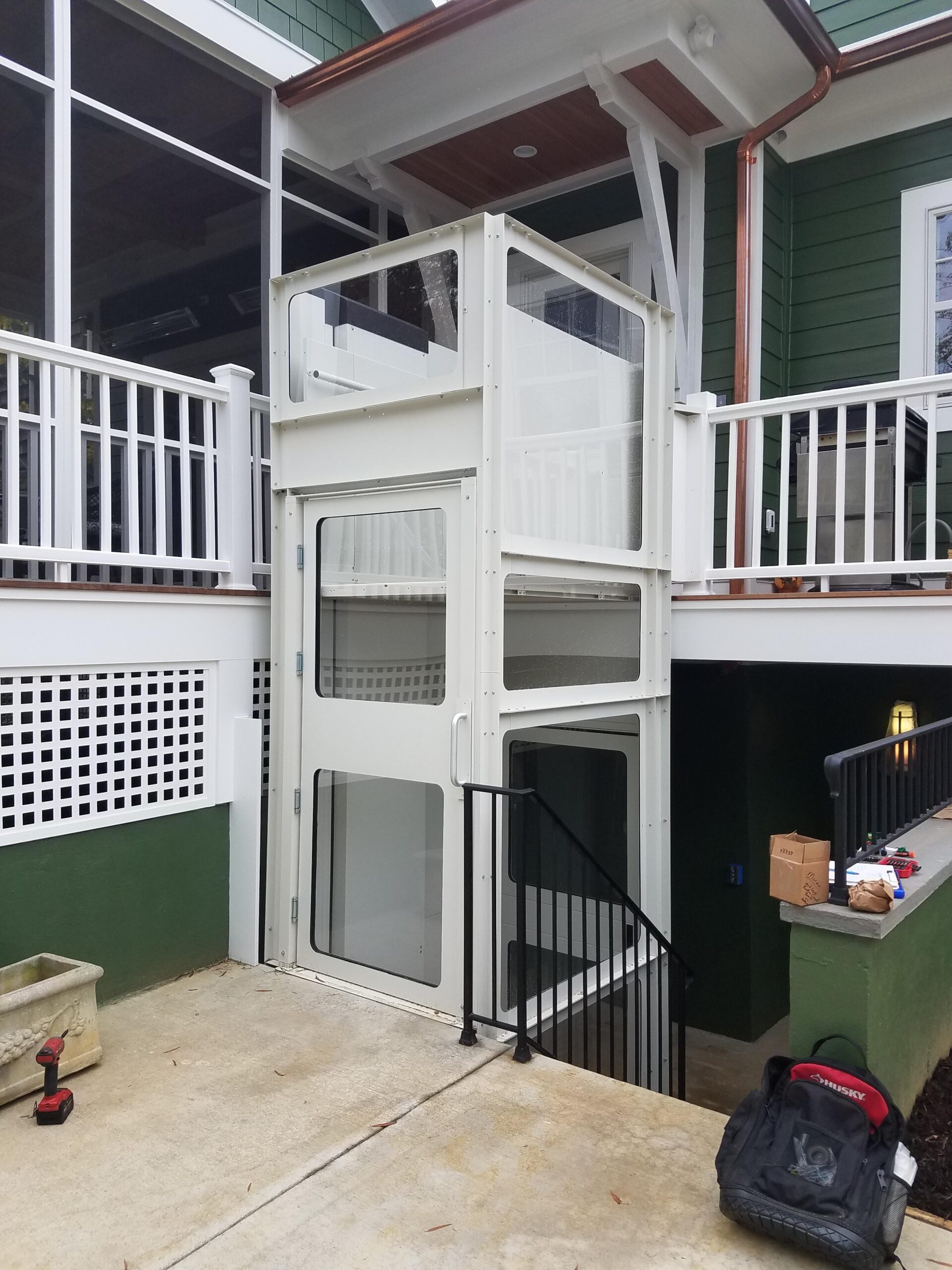

  • With Optional Enclosure Bottom Level
  • With Optional Enclosure Top Level

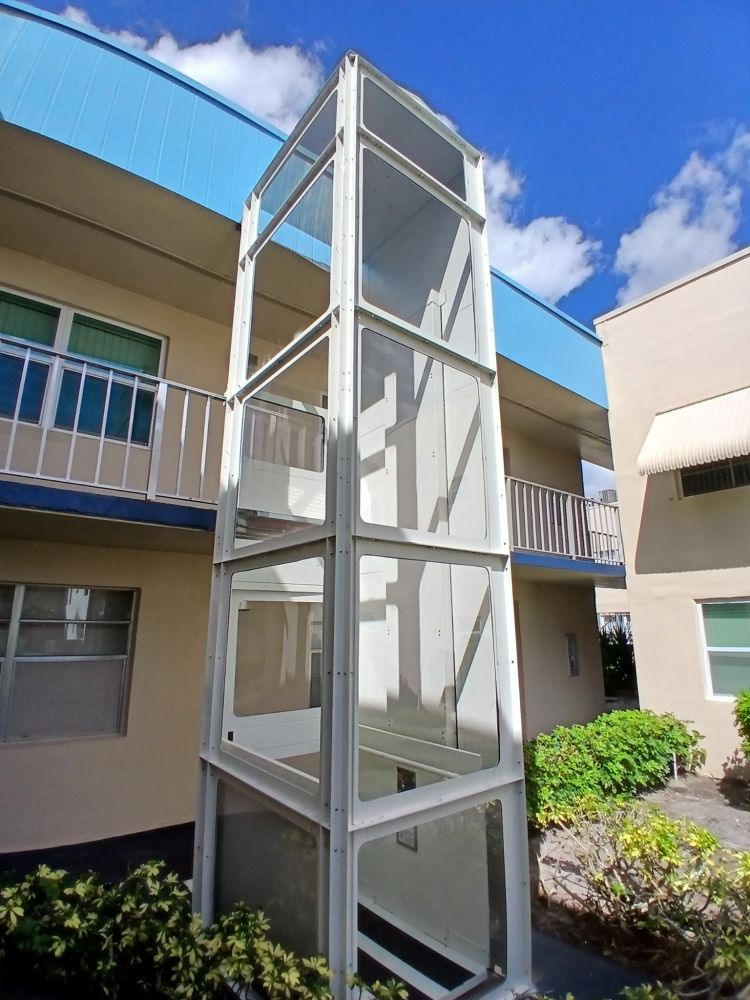

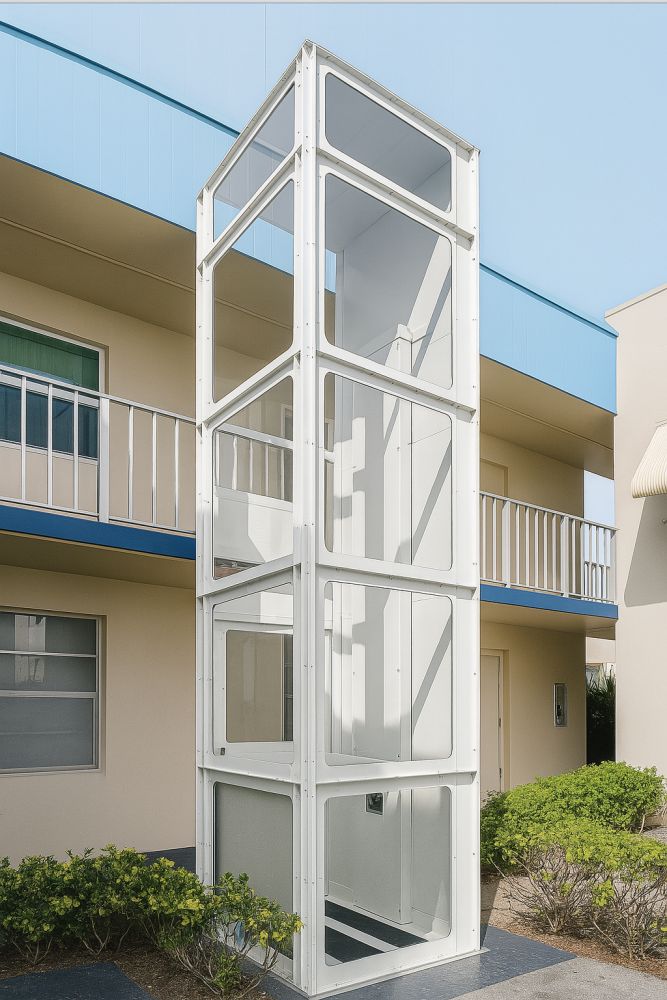

  • Commercial Enclosed

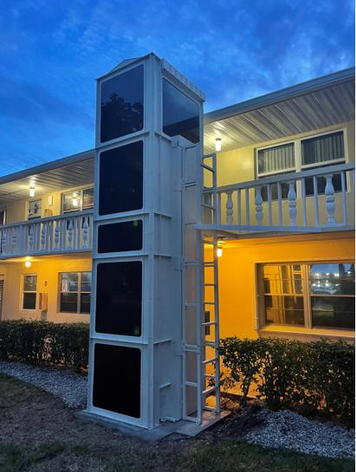

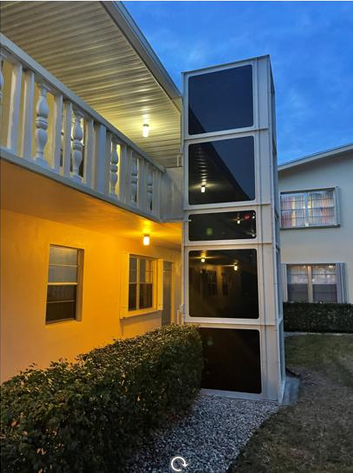

  • Commercial Enclosed View 2

Why Choose Crest Coastal?

  • Corrosion-Resistant Construction: Primary structure is marine-grade aluminum with stainless steel components—built to withstand salt air and moisture.
  • Powder-Coated Finish: Durable and available in custom colors to match your home or facility.
  • High Performance:
    • 750 lb capacity – Available in both Residential & Commercial versions.
    • Maximum lift height: Up to 168 inches (14 feet).
    • Travel speed: 15–18 feet per minute.
    • Smooth, quiet ride – No screw-drive vibration or hydraulic odors.

Smart Features for Seamless Use

  • Battery Powered: Operates even during power outages.
  • Wireless Landing Controls: No tangled wires, no hassle.
  • Diagnostic Display: Easy troubleshooting with onboard indicators.
  • Optional Solar Charging: Patent-pending design allows for fully off-grid operation—no electricity required.
  • Enclosure Options: Protect users from wind, rain, and other coastal elements.

Certified Safe & Code-Compliant

Built to meet or exceed:
  • ASME A18.1 (Sections 2 & 5)
  • ASME A17.5
  • AWS Certified Construction

We can configure your lift to meet all local and regional building codes.

Industry-Leading Warranty

  • Lifetime Warranty on motor/gear and circuit board.
  • Backed by unmatched customer support and expertise.

Questions? Contact Us.

Specifications
  • Lifting Capacity

    750 lb

  • Standard Lift Height

    48"

  • Maximum Lift Height

    168"

  • Arrives Assembled

    Yes

  • Standard Drive System

    Dual Winding Cable Drums with 3/8" Cables

  • Battery Powered Option

    Yes

  • Constant Pressure Platform Controls

    Yes

  • Emergency Stop Platform Control

    Yes

  • Alarm Button

    Yes

  • Call-Send Controls

    RF Call/Send Station (1 per landing provided)

  • Keyed Call-Send Controls

    Yes

  • Platform Type

    Non-Skid

  • Standard Platform Size

    36" x 48"

  • Optional Platform Sizes

    36"x54", 36"x60", 42"x54", 42"x60", Custom

  • Standard Platform Configuration

    Single Entry/Exit

  • Optional Platform Configurations

    Pass Through, 90 Degree

  • Guard Panel

    42"

  • Maximum Stops

    3

  • Lift Speed (FPM)

    15

  • Portable

    No

  • Other Options

    Enclosure, Solar Battery Charger, Bluetooth Controller
