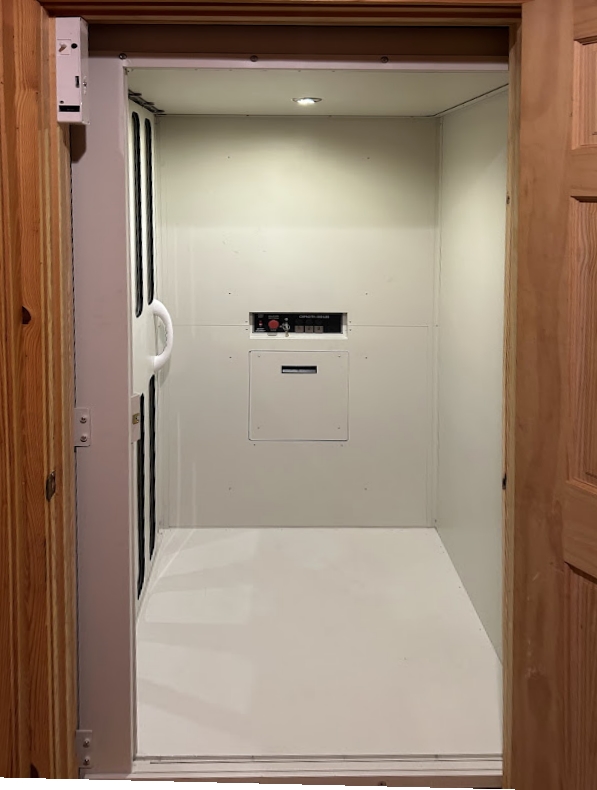

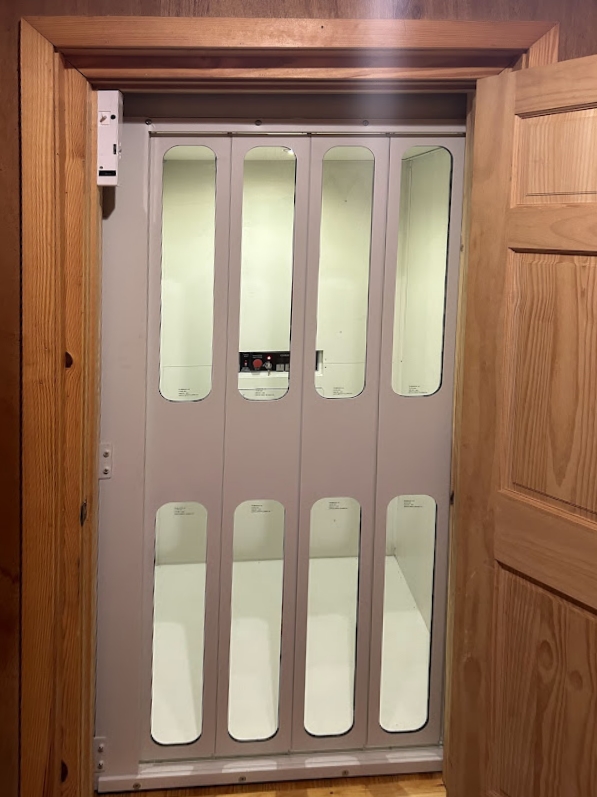

Crest Enclosed Elevator

  • In a Home Hoistway
  • In Optional Enclosure
  • Optional Enclosure with Optional Clear Vision Wall Panels
  • Optional Enclosure Outdoors
The Crest Enclosed Elevator can be installed in an elevator hoistway or in an optional enclosure providing you affordable and safe travel between floors of your home. The Crest Enclosed can accommodate a wheelchair and provides several options for entry/exit. There is no need for a pit nor a machine room on this battery powered, modern elevator.

Included Features:
    GENERAL:
  • Travel to 21' on 3-stop units at 15 fpm
  • Capacity: 500 lbs
  • Extruded 6063 grade aluminum track
  • Dual winding drum drive with ¼" aircraft cables – 7,000 lb breaking strengths
  • Maximum stops: 4
  • Installed in hoistway/enclosure

  • CAR:
  • Fold down car seat
  • Finish: RAL 9002 powder coated with clear vision panels
  • Automatic lighting system
  • 36” wide car door opening (except for 90 degree applications)
  • Single entry or 90 degree entry configurations

  • CONTROLS:
  • Battery powered with charger
  • Automatic operation
  • RF wireless call stations
  • Diagnostic indicator (LED)

  • SAFETY DEVICES:
  • Emergency stop and alarm
  • Slack cable device
  • Car door switch
  • Honeywell door interlock
  • Phone

Call for Shipping Price

Questions? Contact Us.

Specifications
  • Applications

    Residential

  • Capacity

    500 lb

  • Maximum Travel Distance

    31

  • Speed (per minute)

    15'

  • Minimum Overhead Required

    90"

  • Drive

    Travels with Car

  • Motor/Pump

    DC Motor

  • Warranty

    2 year battery warranty – 3 year warranty on all other items.

  • Type

    Dual Winding Drum

  • Cab Heights

    76

  • Max Landings

    4

  • Power Requirement

    110 VAC 2A

  • Pit Depth

    Pit Not Required

  • Emergency

    Emergency Stop, Telephone in Car

  • Safety

    LED Light in Car, Non-Slip Floor, Safety Pan, Slack Cable
