Crest Vertical Platform Lift

spacer

Manufacturer: US Medical     OEM Code:

Crest Vertical Platform Lift

$7,136.00

Free Shipping

instant coupon

Configure & Add to Cart

Quick Stats

  • Lifting Capacity: 750 lb
  • Standard Lift Height: 168"
  • Arrives Assembled: Yes
  • Standard Drive System: Dual Winding Cable Drums with 3/8" Cables
  • Battery Powered Option: No
  • Constant Pressure Platform Controls: Yes
  • Emergency Stop Platform Control: Yes
  • Alarm Button: Yes
  • Call-Send Controls: RF Call/Send Station (1 per landing provided)
  • Keyed Call-Send Controls: Yes
  • Platform Type: Non-Skid
  • Standard Platform Size: 36" x 48"
  • Optional Platform Sizes: 36"x54", 36"x60", 42"x54", 42"x60", Custom
  • Standard Platform Configuration: Single Entry/Exit
  • Optional Platform Configurations: Pass Through, 90 Degree
  • Guard Panel: 42"
  • Maximum Stops: 3
  • Lift Speed (FPM): 15
  • Portable: No
  • Other Options: Enclosure, Solar Battery Charger, Bluetooth Controller

Documents

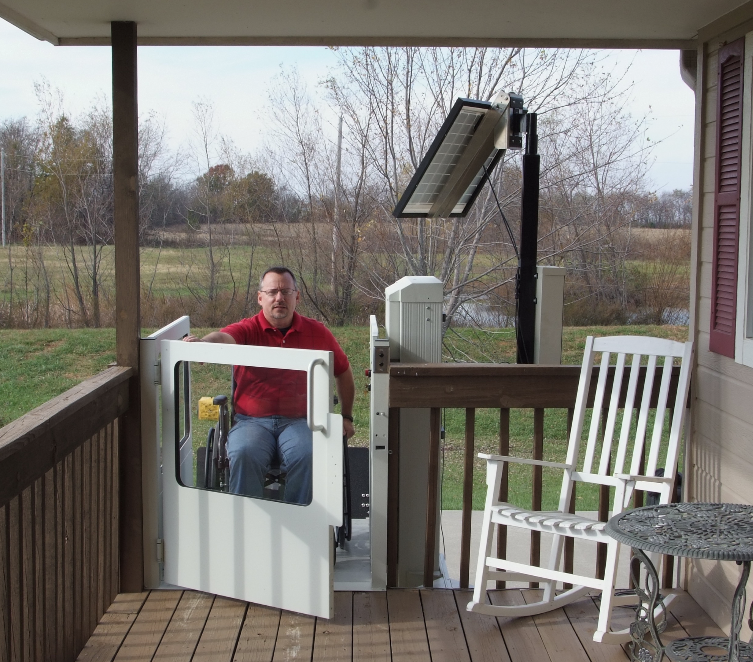

  • Exiting Top Level

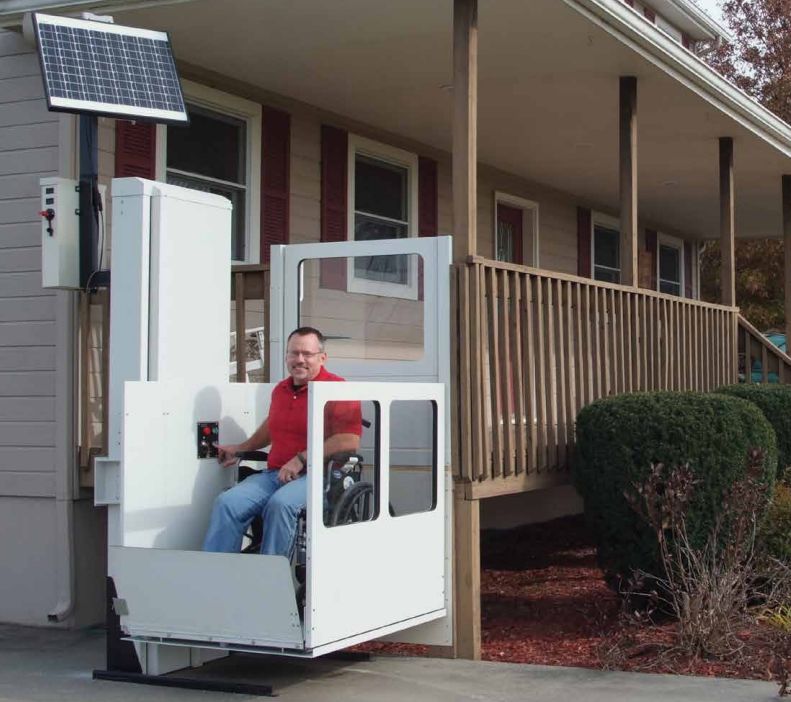

  • With Optional Solar Charger

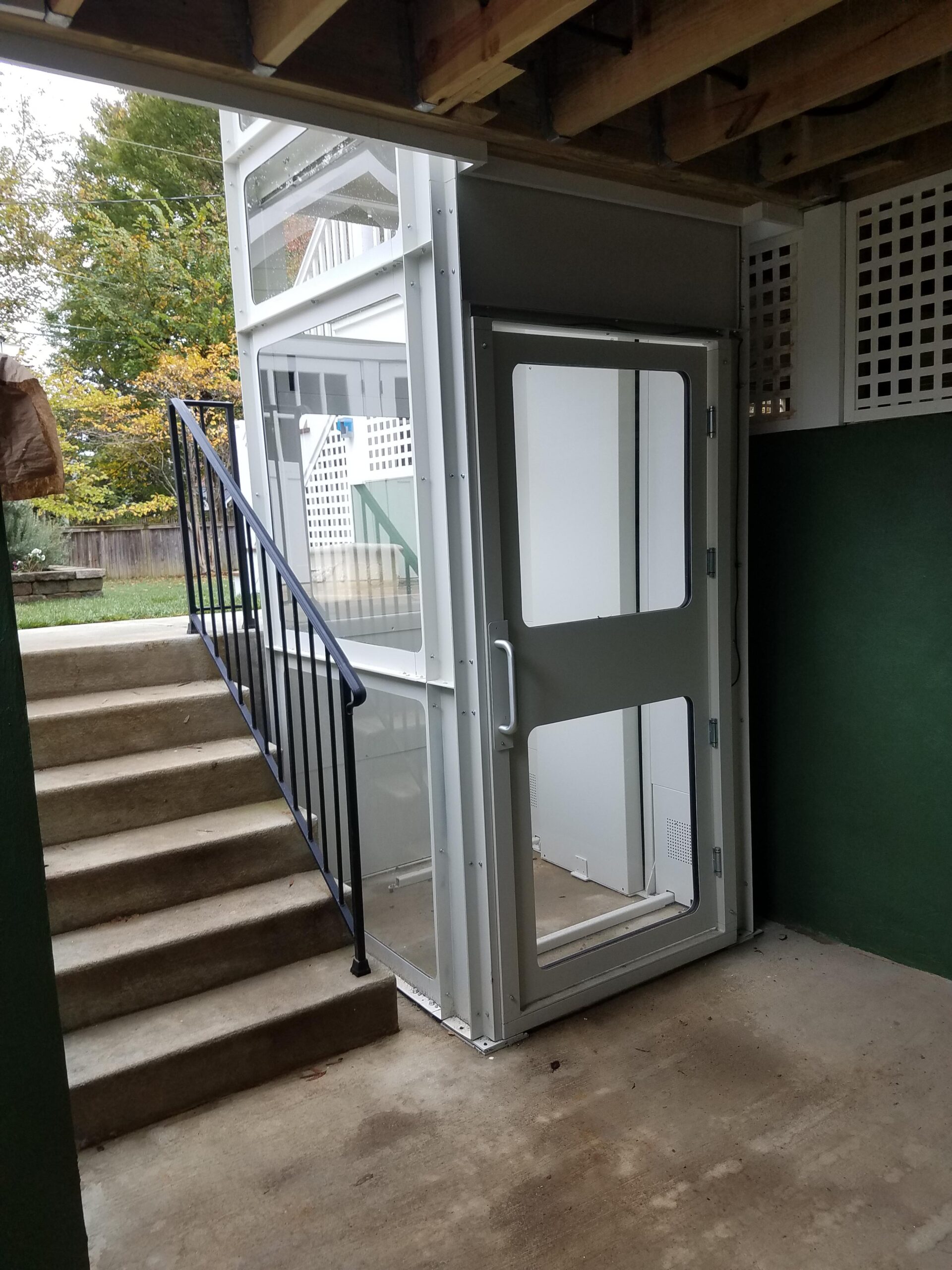

  • With Optional Enclosure Bottom Level

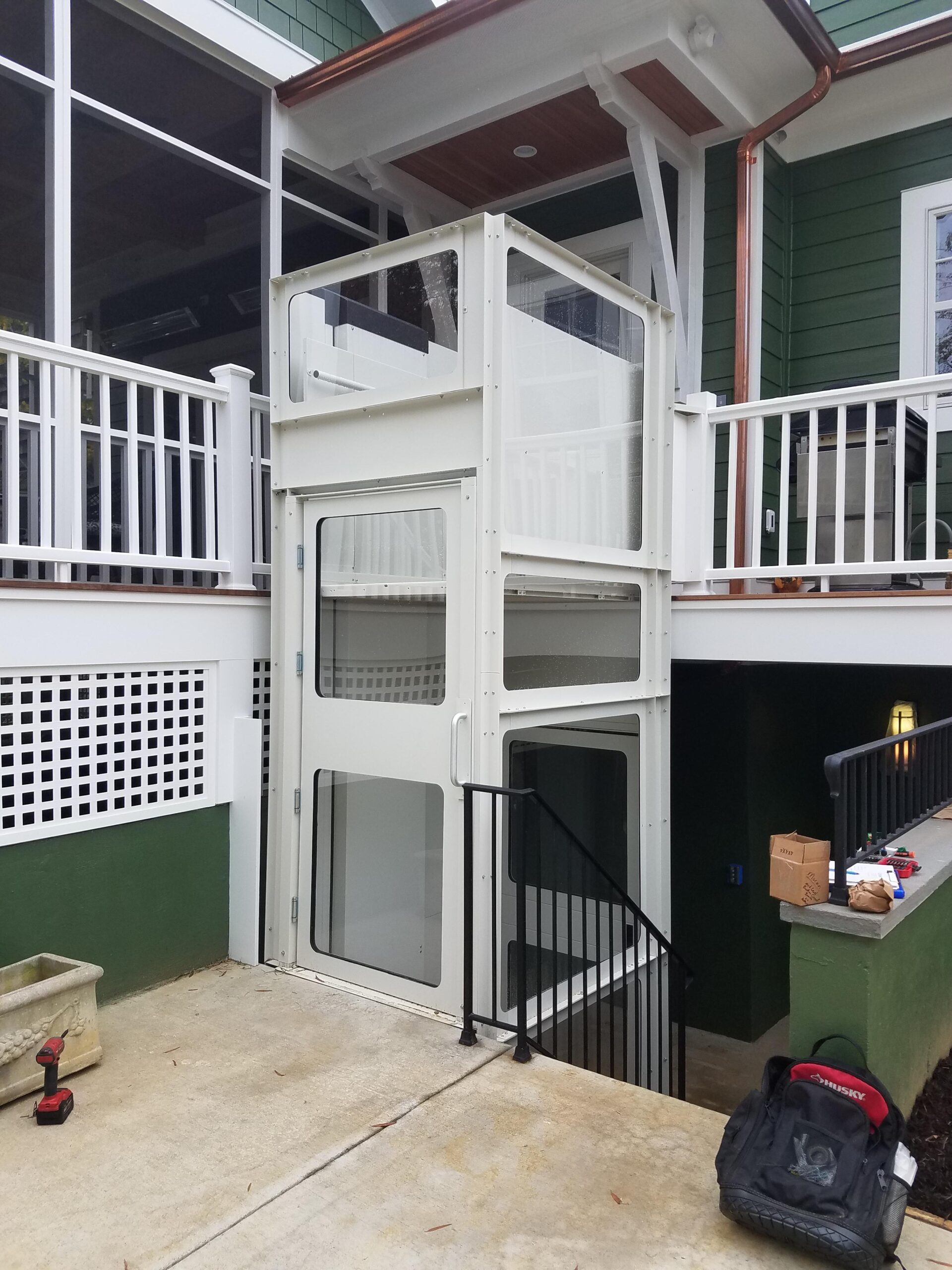

  • With Optional Enclosure Top Level
The battery operated Staying Home Corporation Vertical Platform Lift provides faster travel and a smoother ride than most lifts. Its quieter operation is provided by the elevator cable drum drive which allows a lifting capacity of 750 lbs. Safe and reliable operation is assured by the 3/8" aircraft cable drive and a diagnostic indicator. The lift is AWS Certified, meets A18.1 Section 2 and 5 and is made in America.

Built from durable aluminum, it is corrosion resistant and lighter than most similar lifts. For locations not near electric mains, a solar charger for the battery is available as an option. A full enclosure is also available to keep the rider out of the elements.

Contact our Vertical Platform Lift experts to determine which configuration will best suit your needs.

Call for Shipping Cost.

NOTE:
Delivery only to a freight terminal or commercial site with a dock and forklift on site.
