Manufacturer: AmeriGlide OEM Code: AC-105
Quick Stats
- Drive Type: Sprocket and Chain Drive
- Battery Powered: Yes
- Self Installable: No
- Basic Installation Included: Yes
- Standard Capacity: 550 lb
- Max Track Length, Standard: 16'
- Max Track Length, Optional: 16'
- Track Material: Aluminum
- Swivel Seat: No
- Flip-Up Seat: Yes
- Flip-Up Armrests: No
- Constant Pressure Controls: Yes
- Footrest Safety Sensor: No
- Distance From Wall Required: 13"
- Call Stations Included: Upper Landing on Drive Column, Bottom has Options
- Rail Angle, Min: 25°
- Rail Angle, Max: 50°
- Digital Diagnostics Display: No
- Key Lock: Yes
Documents

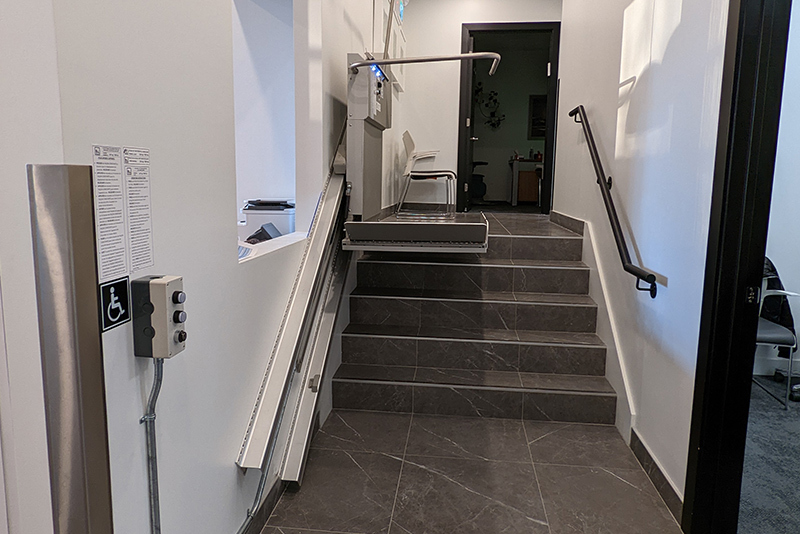

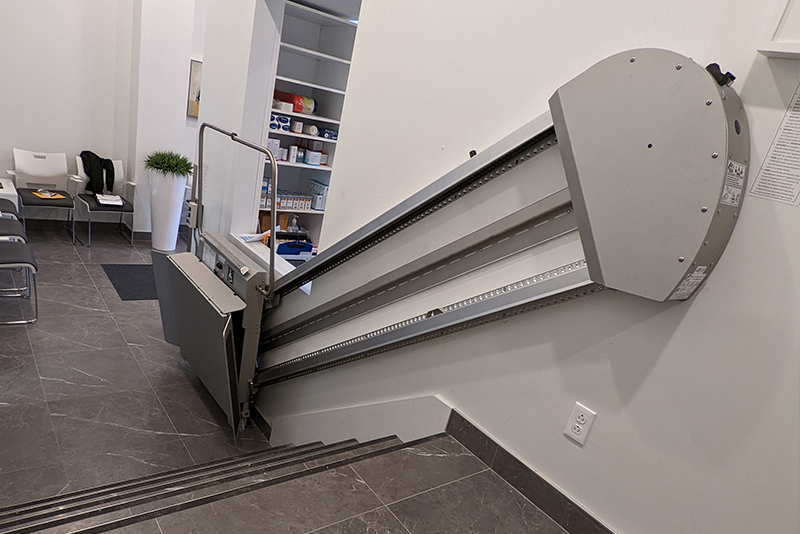

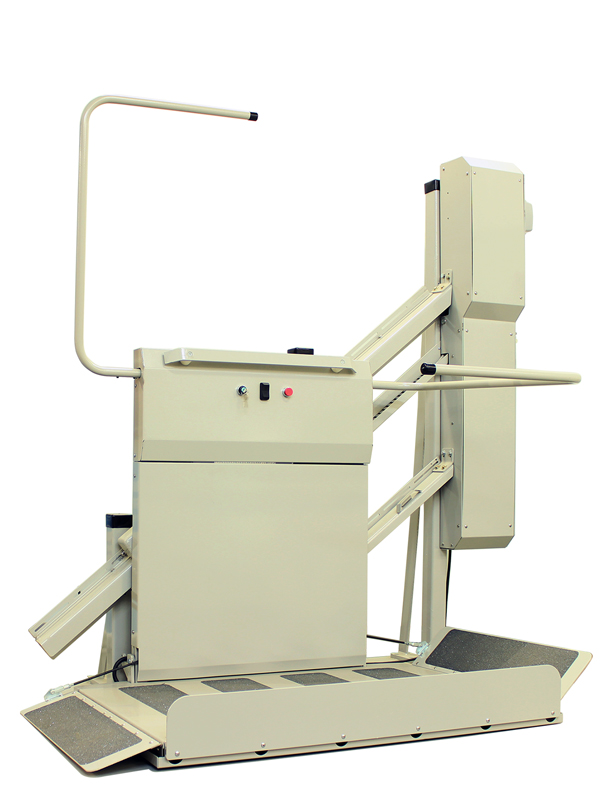

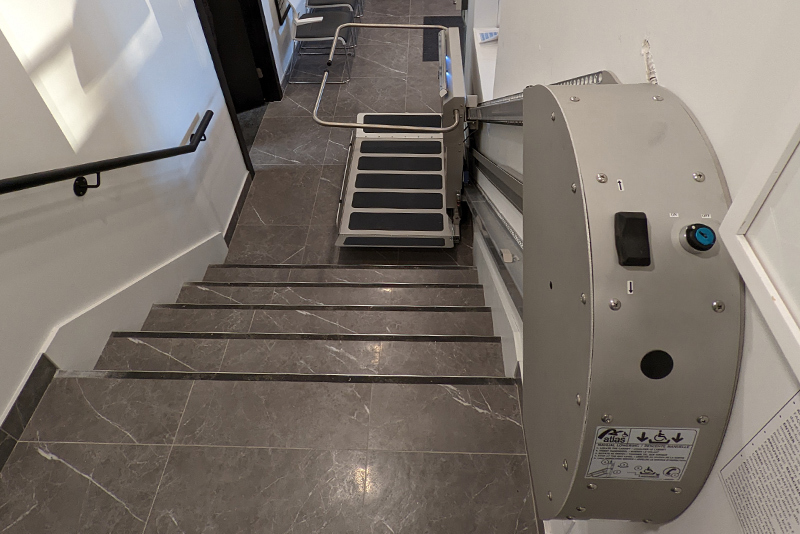

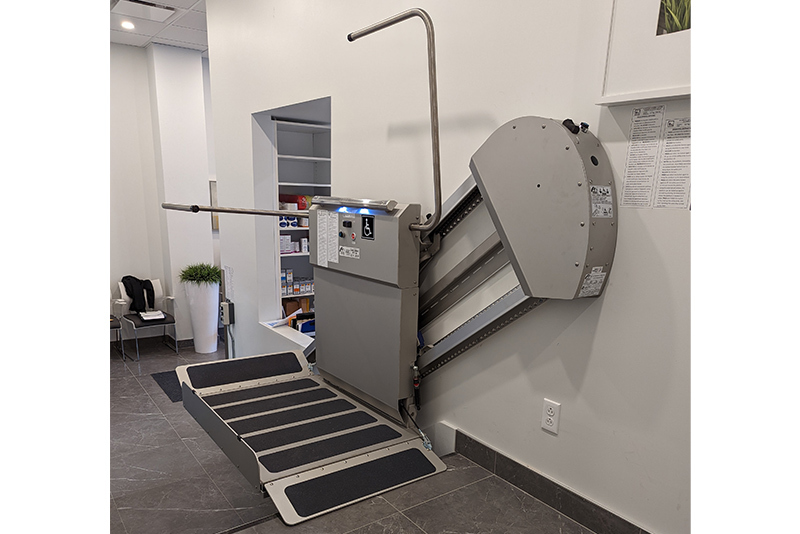

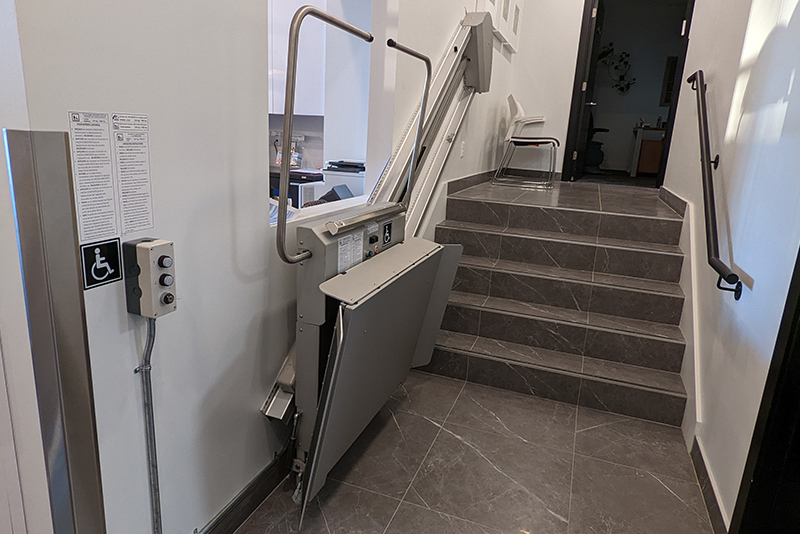

The Titan Incline Platform Lift - Commercial is the ideal solution for making stairs in a commercial building wheelchair accessible. This particular model offers a lifting capacity of 550 pounds (one person in a wheelchair) and includes installation. While built to fulfill code requirements in much of the United States, additional options can be configured to fulfill requirements for your specific locale. To start the process, call our Commercial Incline Platform Lift experts and we will be happy to provide advice and the most ideal solution for your application.
Base pricing includes track, which is cut to the length needed for your staircase, as well as a "straight through" entry/exit platform. Custom platform sizes are available and can be built to your requirements. Safety features and additional options include: Call/send controls with a key lock (post, surface, or flush mount), fold down seat, and handsfree phone.
Give us a call to learn how we can help make your commercial building wheelchair accessible with the Titan Incline Platform Lift.
NOTE: Maximum travel is 200 inches
