Manufacturer: Staying Home Corp OEM Code: SHCHAW
Quick Stats
- Max Travel - Standard: 10'
- Max Travel - Optional: 30'
- Car Size - Standard: 20Wx20Dx30H or 24Wx24Dx30H
- Car Size - Optional: 30Wx30Dx36H
- Stops - Standard: 2
- Stops - Optional: 3 or 4
- Weight Capacity - Standard: 200
- Weight Capacity - Optional: 275
- Stainless Steel Panel Option: Yes
- Hardwood Door Option: Yes
- Straight Through Car Option: Yes
- 90° Car Option: Yes
Documents

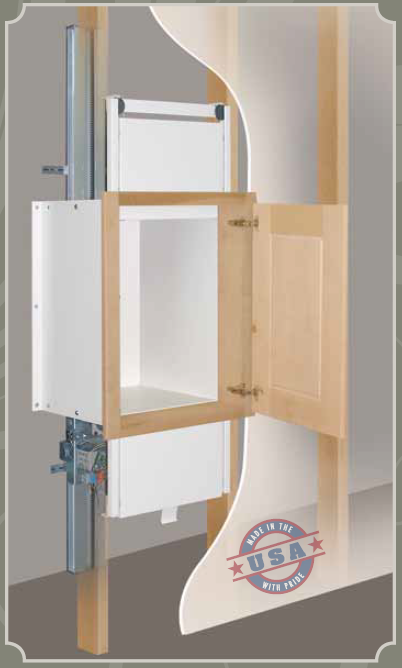

Plug and play simple installation makes installation easy and can be done in half the time as it takes to install other dumbwaiters. The QuickServe II uses a rack and pinion drive so there are no cables, chains, or drums to install. The entire motor and electronics assembly comes pre-assembled on the lower section of the track. Major features include:
- Rack and pinion drive
- No slack cable lock-ups
- Battery operated
- Fast and easy installation – plug and play
- Aluminum rail instead of steel T-rail
- No separate machine room required
- No remote mounted controller
- On board diagnostic troubleshooting LED light
- 20" Wide x 20" Deep x 30" High – 200 lbs capacity
- 24" Wide x 24" Deep x 30" High – 200 lbs capacity
- 30" Wide x 30" Deep x 36" High – 275 lbs capacity
- Optional stainless steel car
- Warranty 5 years on motor and gear, and 2 years on all other parts
